Delivering Strength, Durability and Maximum Profitability.
Wabash Steel Flatbeds
More Flexibility. Longer Life.
With some of the highest floor ratings in the industry, this trailer design offers exceptional load flexibility. The main beam provides a stronger web-to-flange attachment for long-life performance, and potential corrosion is eliminated by welding the high-tensile steel at all flange-web joints. In addition, the “K”-type structural assembly reduces side bending and increases durability.
Less Maintenance. More Uptime.

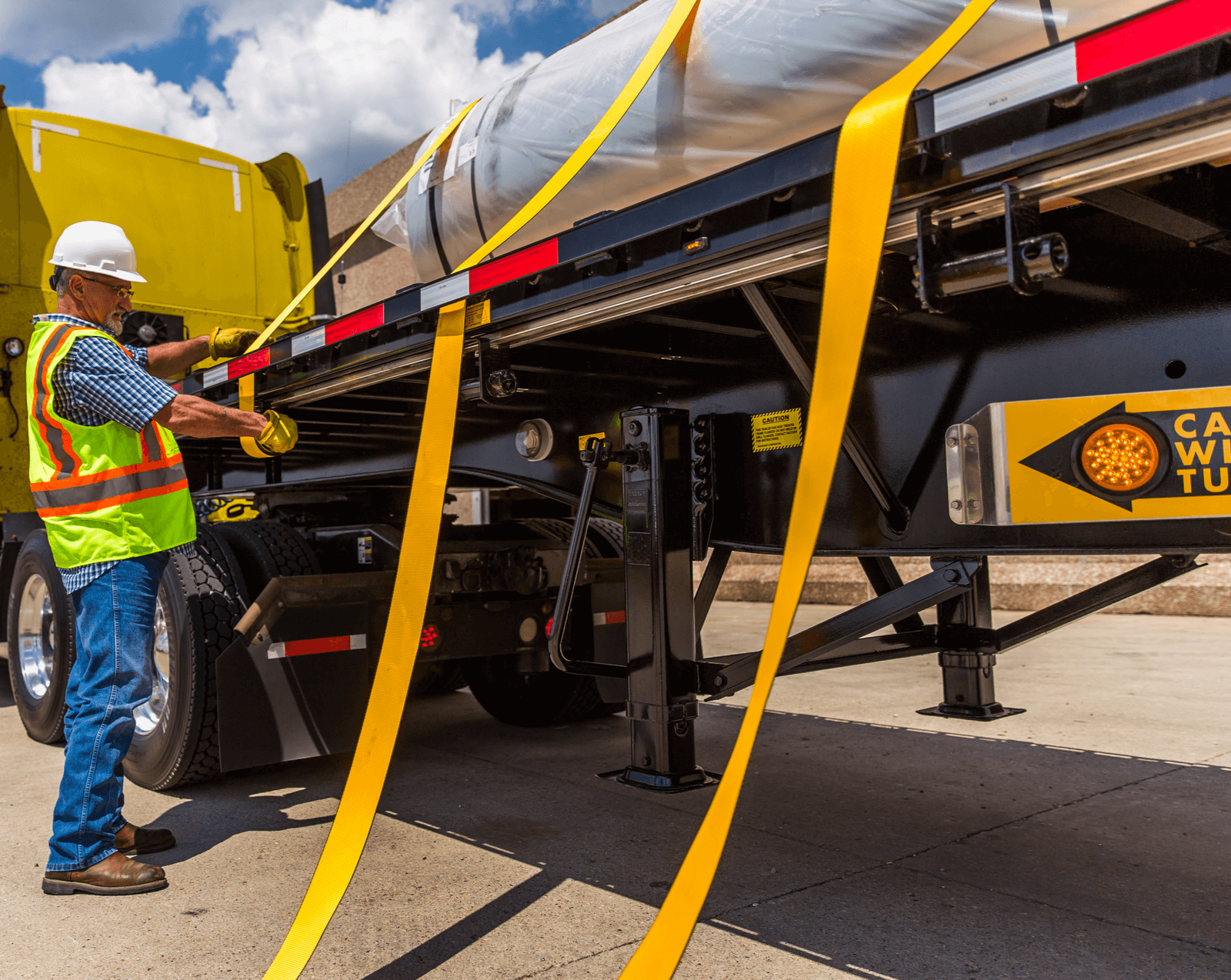

The interlocking apitong floor system uses two grade-8 floor screws at each crossmember. This double-shear connection reduces racking and nailer damage, while the radius edges on the “C”-section siderail reduce winch strap wear. The steel rub rail with recessed grooves also protects conspicuity tape for longer-lasting performance.
Better Visibility.
The enhanced visibility lighting system includes three stop/tail/turn lamps and five dual-function side marker lights. These marker lights also serve as turn signals, improving motorist visibility and overall highway safety.
Superior Corrosion Resistance.
Every steel surface is 100% shot-blasted before priming and painting—eliminating the need for chemical pretreatments. From ultra high-zinc epoxy primer and galvanic coating to automotive-grade acrylic urethane paint, this trailer delivers unmatched corrosion resistance and higher resale value.
Steel Flatbed Specifications
| Category | Details |
|---|---|
| General |
Length: 28′–53′ Width: 96″ and 102″ |
| Beam Ratings |
554: 55,000 lb in 4′ / 60,000 lb in 10′ / 93,700 lb evenly distributed 654: 65,000 lb in 4′ / 70,000 lb in 10′ / 110,400 lb evenly distributed 734: 73,000 lb in 4′ / 80,000 lb in 10′ / 125,000 lb evenly distributed |
| 48′ Base Weights |
554: 10,796 lb 654: 10,999 lb 734: 11,596 lb |
| Main Beam Design |
• Fully welded flange and web joints • 50,000-PSI high-strength steel web • 100% automated continuous welds • Heat-treated flanges rated at 130,000 PSI • 24″ cross braces, 48″ knee braces • Lifetime main beam warranty |
| Front End Design |
• Steel front crossmember • Center-mount glad hands & 7-way panel • ¼″ steel coupler plate (SAE J133 tested) |
| Rear End Design |
• Three rear stake pockets • Horizontal bumper caps • Vertical dock bumpers (3-bolt) • DOT & Transport Canada compliant |
| Siderail Design |
• 5.5″ 10-gauge steel rails • Radius edges with recessed rub rail • Stake pockets on 24″ centers • Double pipe spools |
| Crossmembers & Floor |
• 80K high-tensile 4″ steel I-beams on 12″ centers • Interlocking apitong wood floor • 2 grade-8 screws per crossmember • Vertically welded siderail-to-crossmember connection |
| Undercarriage |
• K-bracing with angular gussets • Triangular truss suspension gussets • 121″ tandem widespread axle • Axle alignment, large bearings, “P” spindle ends |
| Electrical / Lights |
• Air/electric access via front plate • Below-deck routing • LED lights with 5 dual-function side markers • Enhanced visibility stop/turn system • ABS braking system |
| Finish & Preparation |
• 100% shot-blasted before assembly • No chemical pretreatment required • Zinc epoxy primer + galvanic coat • Acrylic urethane paint pre-assembly |
| Popular Options |
• Additional air/electric configs • Extra aluminum components • Specialized coil or floor packages • Alternate crossmember spacing • Custom bumper filler plates • Factory-installed bulkheads • Multiple axle/lift/sliding suspensions • Freight securement & storage solutions |
