Commercial Truck Lease & Rental

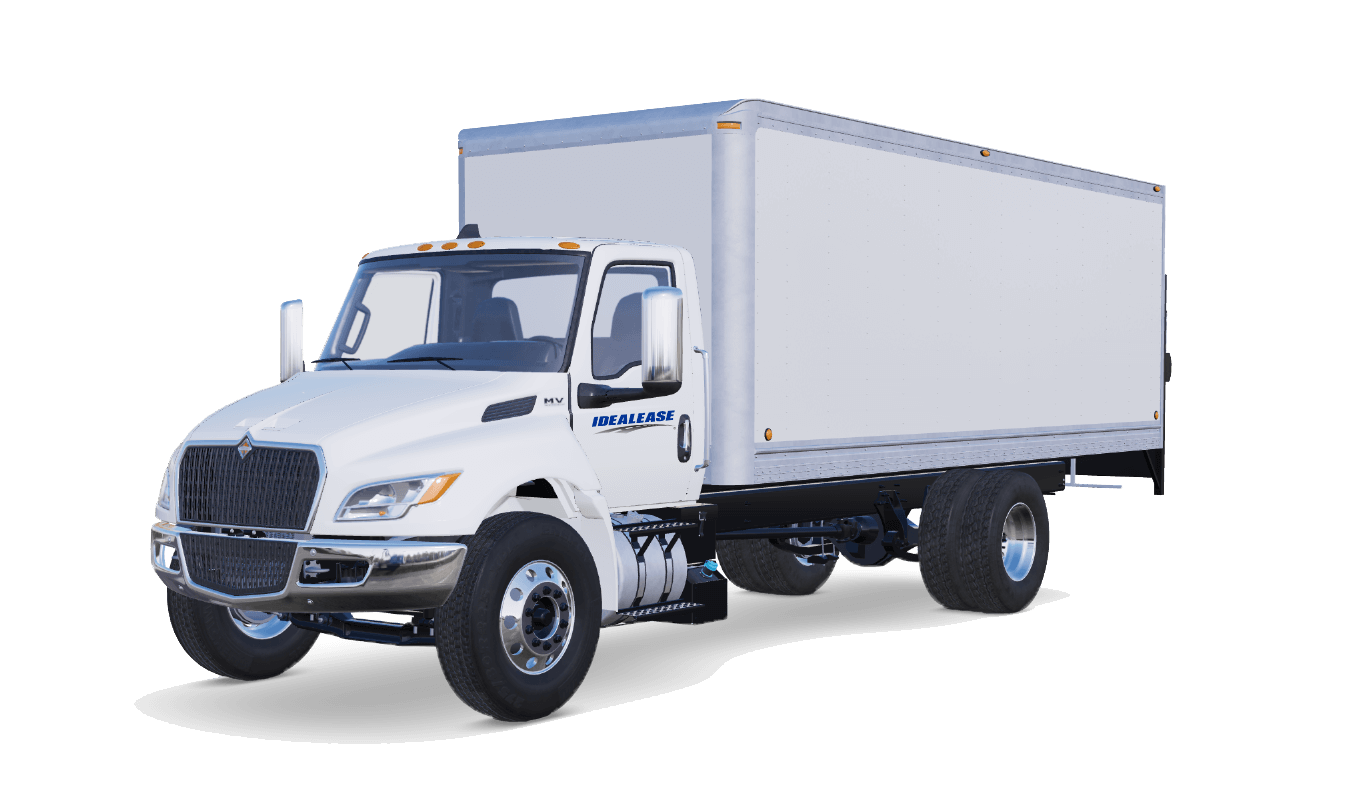

Box Truck
MAKE & MODEL
Manufacturer:
Model:
Detailed Specifications
| GVWR | 21,500 – 54,700 lbs. |
|---|---|
| Models / BBC / BA |
MV607: 107.5" BBC, 40.4" BA MV60H: 107.5" BBC, 40.4" BA (Low Profile) |
| Cab Configurations |
Day Cab Extended Cab Crew Cab |
| Wheelbase Options | 128" – 311" |
| Axle Configurations | 4x2, 6x4 |
| Frames |
High-Strength Low-Alloy Steel 50,000 – 80,000 PSI Heat Treated Alloy Steel 120,000 PSI Clean CA available for body mounting 20" Integral Front Frame Extension |
| Rear Axle |
Single Rear Axle (4x2) • Meritor: 13,500 – 30,000 lbs. • Dana Spicer: 13,500 – 30,000 lbs. Tandem Rear Axle (6x4) • Meritor: 34,000 – 40,000 lbs. |
| Rear Suspension |
Spring, Single Vari-Rate: 13,500 – 31,000 lbs. Tandem, 4-Spring Multileaf: 34,000 – 40,000 lbs. IROS Air Suspension available for Single and Tandem Axle |
| Front Axle |
Meritor: 8,000 – 14,700 lbs. (4x2, 6x4) Dana Spicer: 8,000 – 14,700 lbs. Hendrickson Steertek: 10,000 – 12,000 lbs. |
| Front Suspension | Spring, Parabolic Taper Leaf: 8,000 – 14,700 lbs. |
| Electrical System |
Diamond Logic Electrical System Alternators: 12 Volt 160 – 325 Amp Battery Systems: 12 Volt, 2 to 4 Batteries, 1,320 – 3,450 CCA Headlights: Long Life Halogen, Optional LED, Optional Heated LED |
| Exhaust System |
Single, Horizontal, Aftertreatment Device Frame Mounted Right, Under Cab or Back of Cab, Horizontal or Vertical Tailpipe |
| Brakes |
Standard Air Brakes with ABS, Optional Traction Control, Optional Electronic Stability Program with Traction Control Optional Hydraulic Disc with Four Channel ABS, Optional Traction Control, Electronic Stability Program |
| Steering |
TRW/Ross Power Sheppard Power |
| Engines |
Cummins B6.7: 200 – 360 hp and 600 – 800 lb-ft torque Cummins L9: 260 – 360 hp and 860 – 1,150 lb-ft torque |
| Transmissions |
Eaton Fuller: 6, 10-Speed Manual Allison: 2000, 3000 Series Automatic (HS, EVS, RDS, MH) Eaton Fuller: Advantage 10-Speed Fully Automated Manual |
| Fuel Tanks |
40 – 140 Gallon Non-Polished and Polished Aluminum, Mounted Right Side, Left Side or Dual Under Cab |
| DEF Tank | 5 – 16.5 Gallon |
| Tires | Continental, Michelin, Goodyear, Bridgestone, Hankook, Pirelli |
