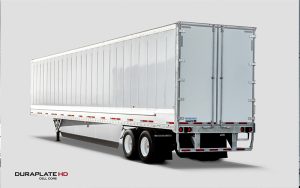

Wabash DURAPLATE DRY VANS
| Manufacturer: WABASH |
Request A Quote
MAKE & MODEL
DETAILED SPECIFICATIONS
110-1/4"
101"
111-1/4"
68,000 lb / 30,845 kg
20,000 lb / 9,072 kg
High-strength steel, 3-3/8? short can coupler ,
AAR-rated king pin with zinc anodes for corrosion protection,
One-piece extruded aluminum header,
.125? extruded aluminum, 5? radius front corner post,
6-post nose, two structural corner posts and four 80k steel hat posts mounted with steel bolts,
Heavy-duty, 3/16? stainless steel lower nose rail
DuraPlate Cell Core composite panels with a limited 10-year warranty*, made in the U.S.A.,
Flat DuraPlate seam with overlapped top rail ,
14-gauge recessed logistic seam on 50" vertical centers ,
Integral A-slots punched on 4-1/2" centers rated at 1,880 lb working loads,
18-gauge x 80k steel scuff liner fastened to sidewalls on 8? centers with stainless steel bucked rivets
DuraPlate Cell Core composite panels with a limited 10-year warranty*, made in the U.S.A. ,
Flat DuraPlate seam with overlapped top rail ,
14-gauge recessed logistic seam on 50? vertical centers,
Integral A-slots punched on 4-1/2? centers rated at 1,880 lb working loads,
18-gauge x 80k steel scuff liner fastened to sidewalls on 8? centers with stainless steel bucked rivets
.040" aluminum roof sheet wrapped over top rail edge ,
18-gauge 80k steel anti-snag roof bows mounted on 24" centers
Hot Dipped Galvanized for corrosion resistance ,
Rear impact guard with outboard vertical bumper legs meets or exceeds U.S. DOT and Transport Canada requirements ,
5/16" steel base plate in rear sill with 1/2" post protection ,
Eyebrow and vertical light protection ,
Rear header with integral gutter,
DuraPlate composite swing doors, aluminum 4-hole hinge, five hinges per door ,
TrustLock Plus® System1 with lower sill mounted hardware d a lock rod with integral door holdback, 1 per door
Mechanical or air suspension
DESCRIPTION
WE’VE UPPED THE GAME IN THE CONVENTIONAL DRY VAN HAUL
SAME DURABILITY. BEST-IN-CLASS WEIGHT.
America’s favorite DuraPlate dry van now features DuraPlate Cell Core Technology, Wabash composite panel breakthrough that reduces trailer weight by 300 lbs. per 53’ trailer—all without compromising strength or durability. Plus, from the damage- and corrosion-resistant components, to the LED light system, the Wabash dry van lasts longer and delivers resale values among the highest in the industry
